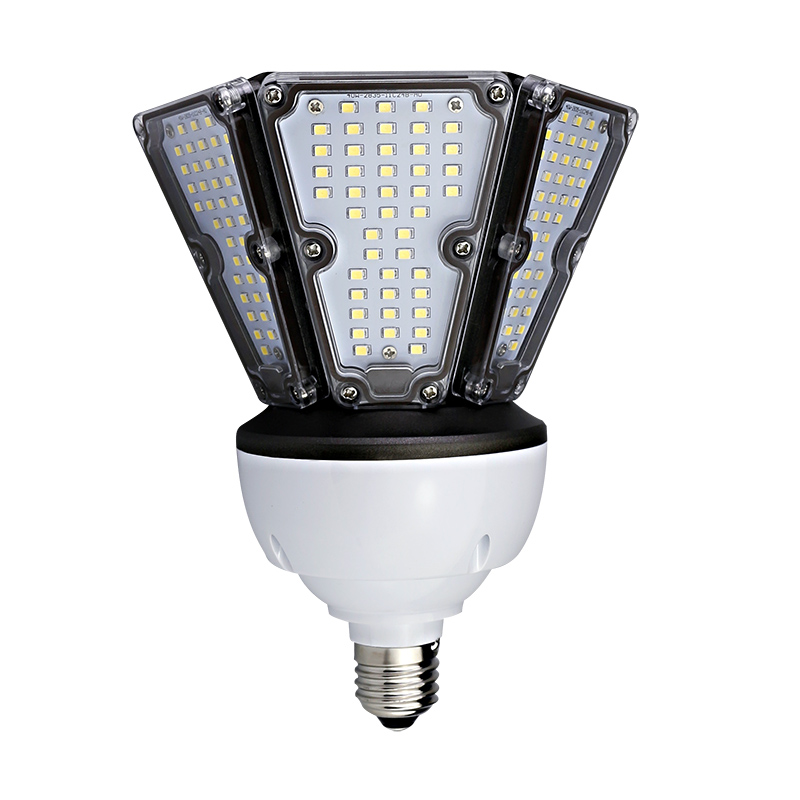

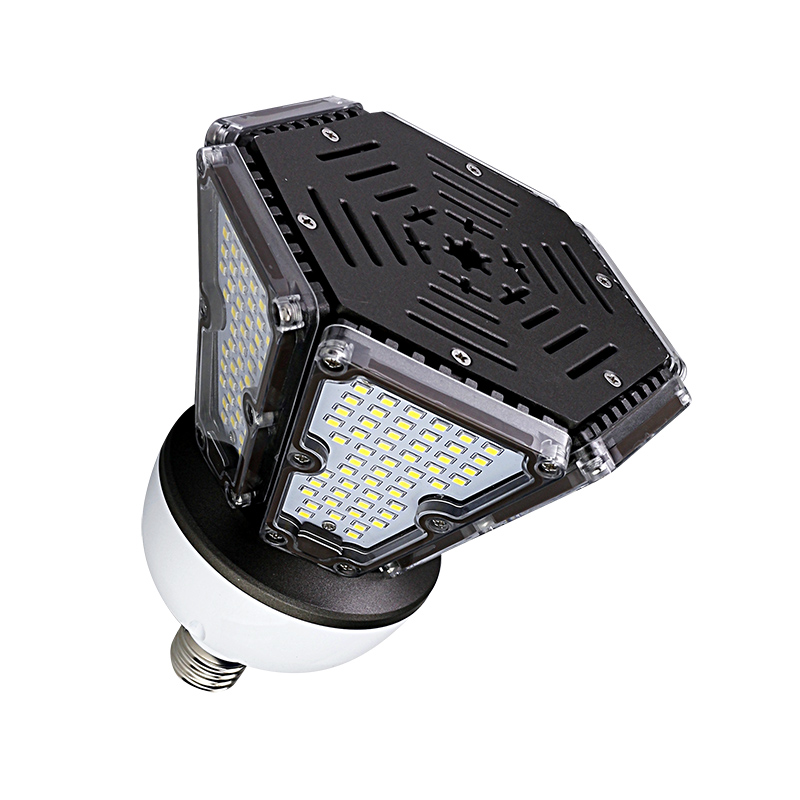

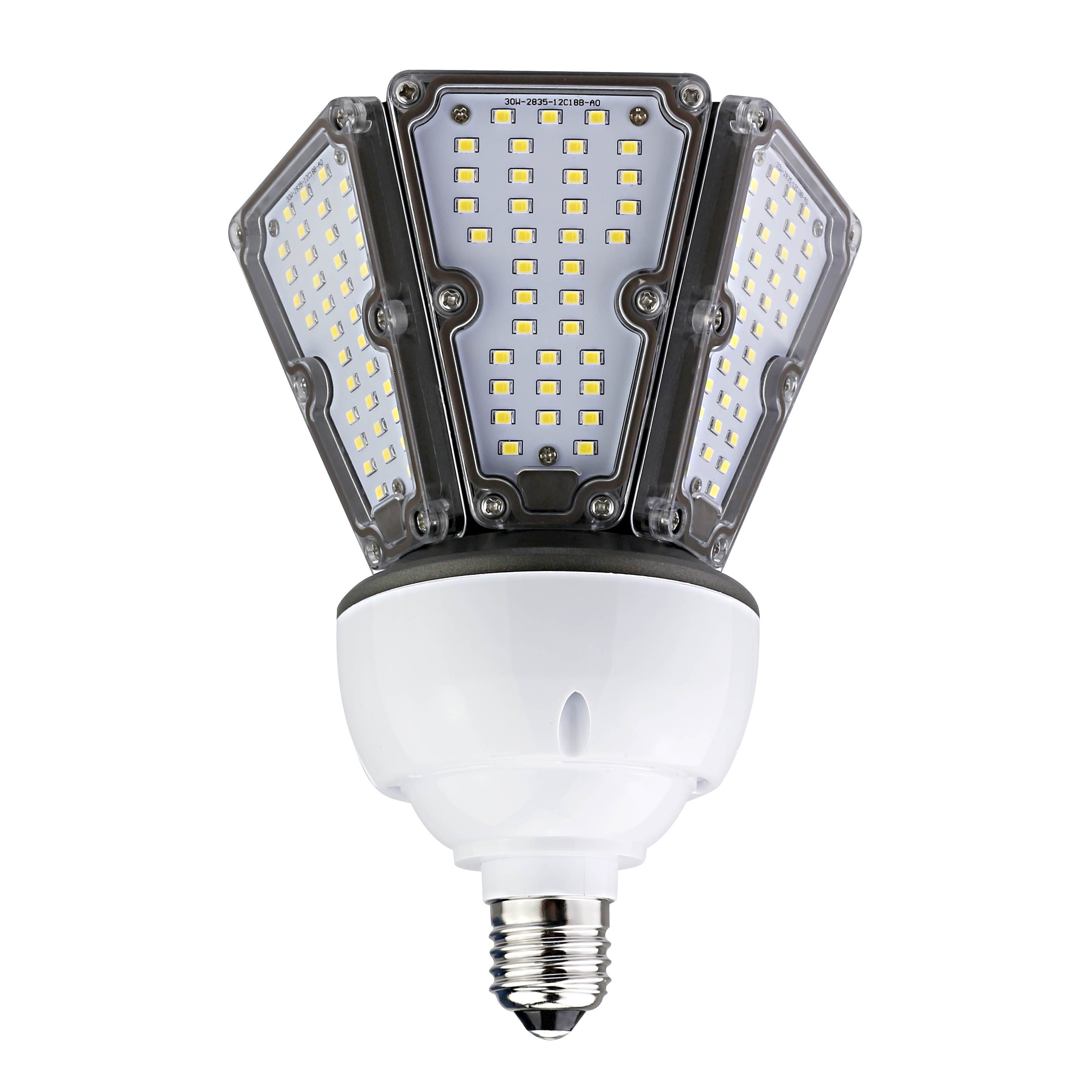

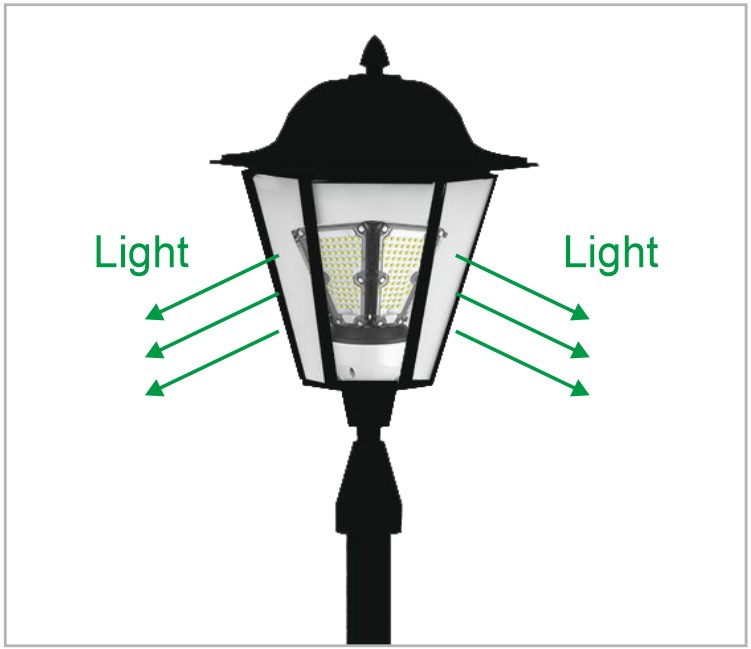

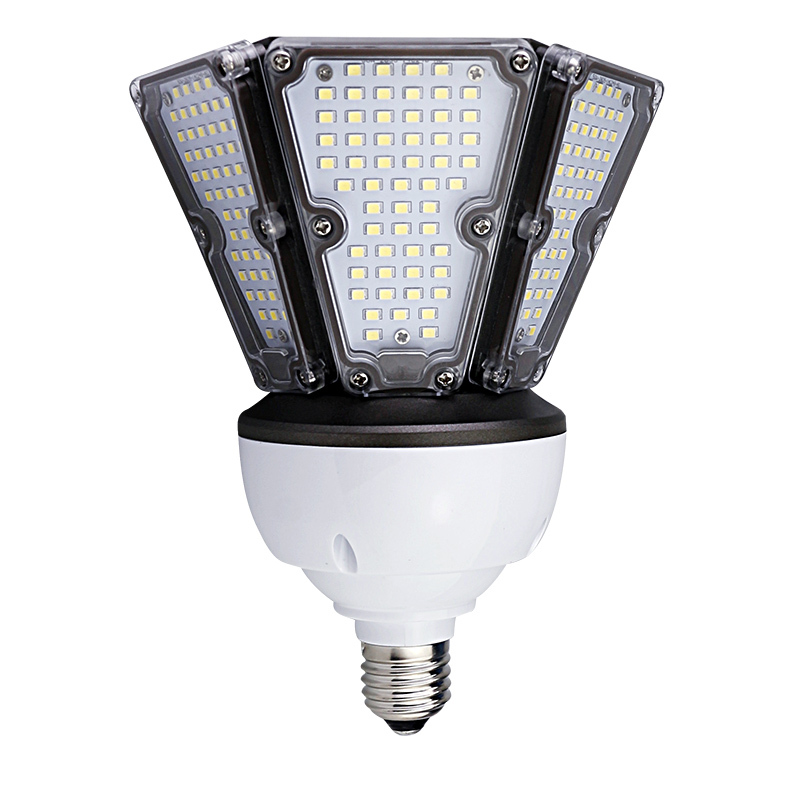

Pyramid LED Post Top Light

Pyramid LED Post Top Light

EL-CL-DCL-xxW

U.S.＄ 0.00
0.00
Power：
CRI：
Lamp Efficacy：
Base：
Input Voltage：


EL-CL-DCL-xxW

Main Feature:

◆ Excellent Heatsink: Aluminum heat sinks and active air exchanging cooling system can speed up heat dissipation.

◆ Brand Chip:San'an, Samsung or Philips brand LEDs in optional.

◆ Good Quality Driver: The internal quality UL listed driver with Rubycon.

◆ Best Energy-efficiency: System efficacy up to 150+lm/W max., 1:1 replacement of CFL Lamps.

◆ Comfortable Light: CRI can increase to 80Ra+ for all color temperature

◆ Optimal Lighting Effects: New platform & optical design reduce 20% glare.

◆ Various Bases: E26/E27/E39/E40 Base in optional.

◆ Flame Retardant PC:  clear cover.

◆ High Transmittance Cover: Polycarbonate PC cover with 92% transmittance.

◆ Large Beam Angle: The beam angle for the LED corn light is 360°.

◆ Advanced Control Interface: Dimming and sensor functions available.

◆ Robust & Reliable: IP65 protection level and 50000 hours system life time.


Specification

Item No.WattLEDs and Qty.CCTCRILuminous FluxInput VoltageBase
EL-CL-DCL-30W30W168pcs SMD28352700K-7000K 70+/80+/90+3900-4500lmAC100-277VE26/E27/E39/E40
EL-CL-DCL-36W36W168pcs SMD28352700K-7000K 70+/80+/90+4680-5400lmAC100-277VE26/E27/E39/E40
EL-CL-DCL-40W40W224pcs SMD28352700K-7000K 70+/80+/90+5200-6000lmAC100-277VE26/E27/E39/E40
EL-CL-DCL-45W45W224pcs SMD28352700K-7000K 70+/80+/90+5850-6750lmAC100-277VE26/E27/E39/E40
EL-CL-DCL-50W50W280pcs SMD28352700K-7000K 70+/80+/90+6500-7500lmAC100-277VE26/E27/E39/E40
EL-CL-DCL-54W54W280pcs SMD28352700K-7000K 70+/80+/90+7020-8100lmAC100-277VE26/E27/E39/E40
Products Description

Product Description

EXPO DCL-series led corn lights use Rubycon driver, San'an or Philips chips, IP65 damp location-rated design, waterproof,
dust-proof, mosquito-proof, driver is sealed with thermal paste, working temperature -40F ~ 140F, active heat dissipation with aircraft grade aluminum, 360 degree beam angle, flame retardant materials, suitable for use in totally enclosed fixtures. UL Listed. DLC 4.2 Qualified. Direct wire lamps, must bypass the ballast.
Details Images

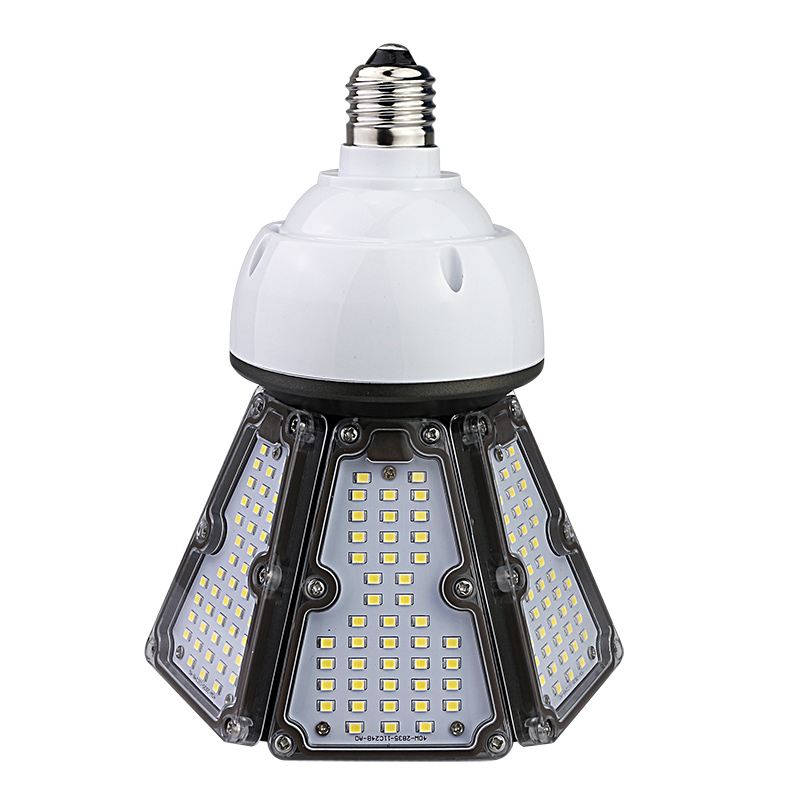

The Bright Brand LEDs

Use 240+lm/W brand SMD2835 LEDs

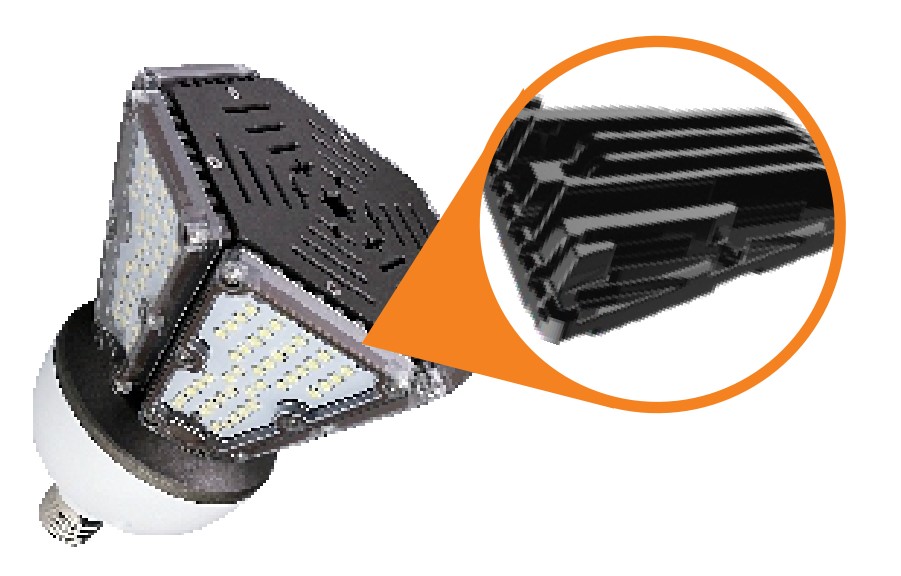

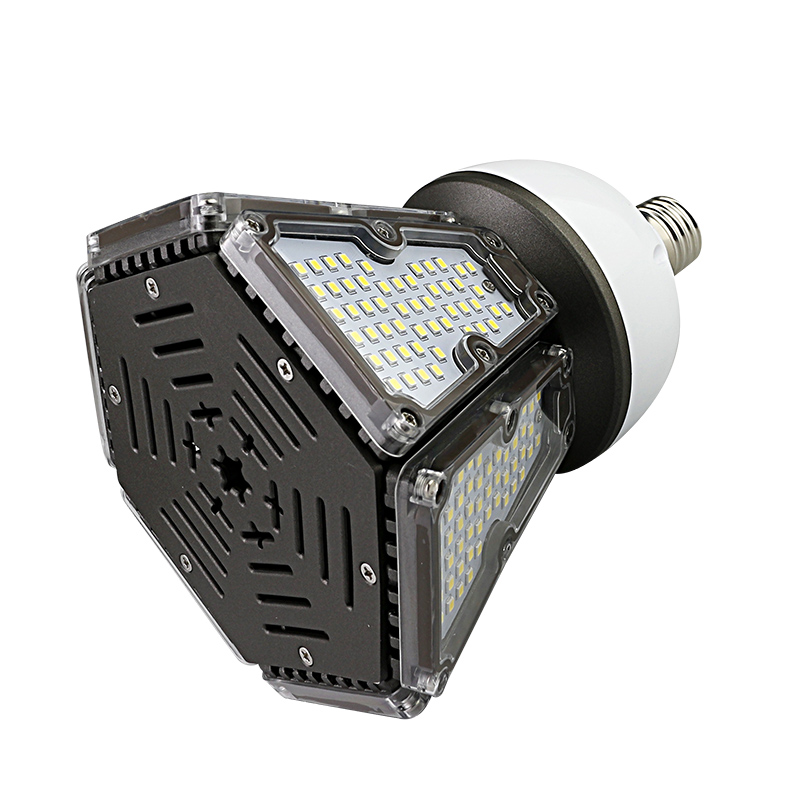

Excellent Aluminum die-casting
heat sinks
Aluminum heat sinks and active air exchanging cooling system can speed up heat dissipation.

Good Quality Driver
Internal quality UL listed driver with Rubycon, Input AC100-277V.

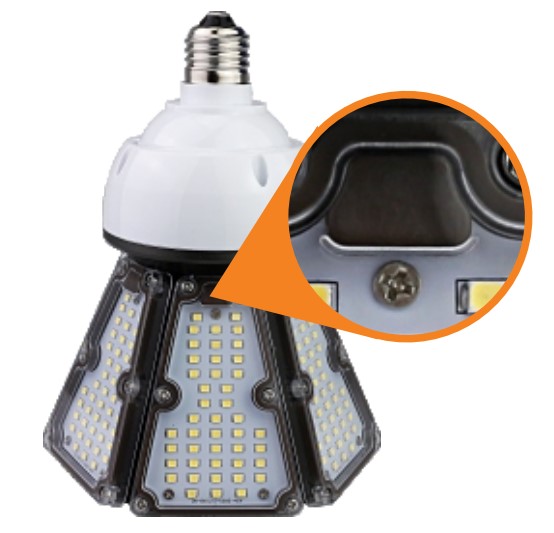

Strong Tightness


E26/E27/E39/E40 Base in optional;

Naked,Clear Cover and PC Cover in optional.

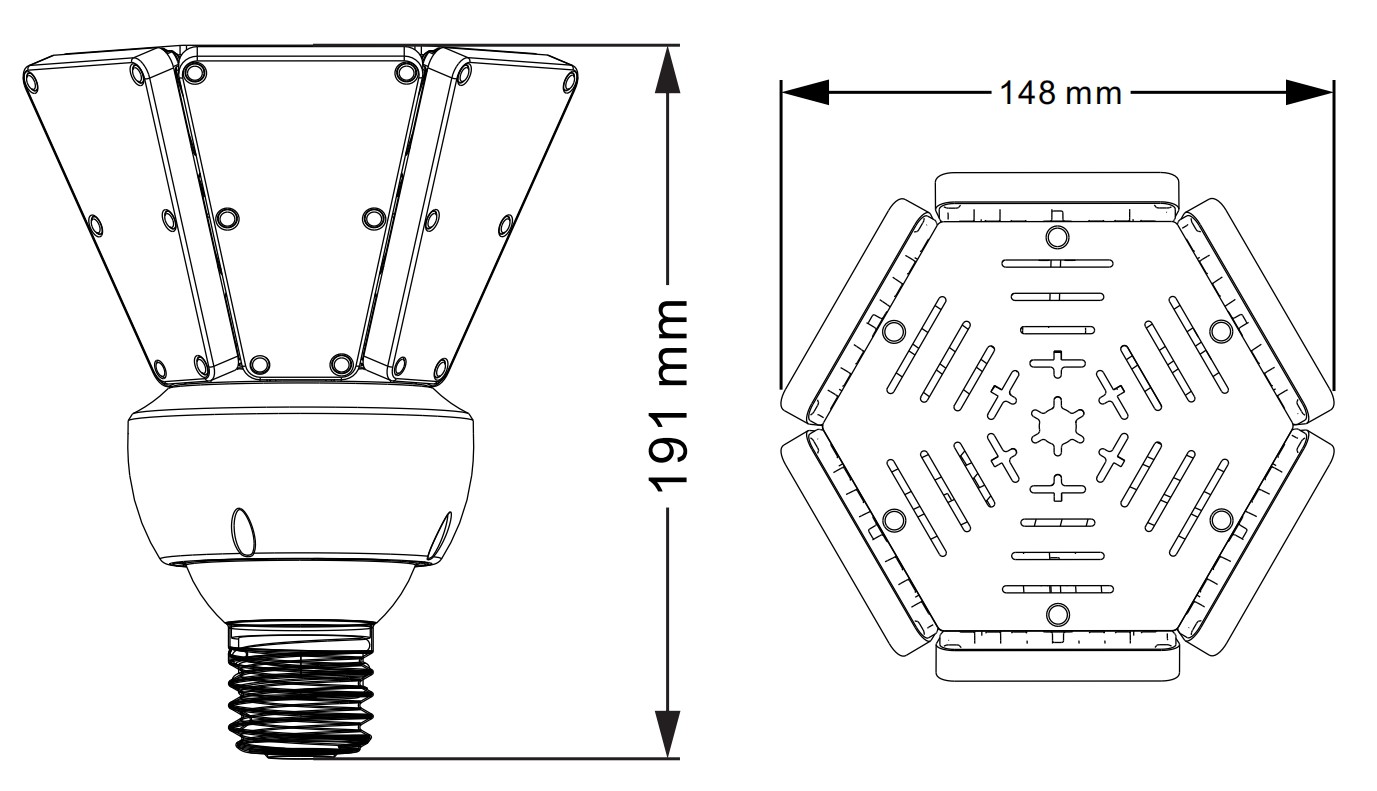

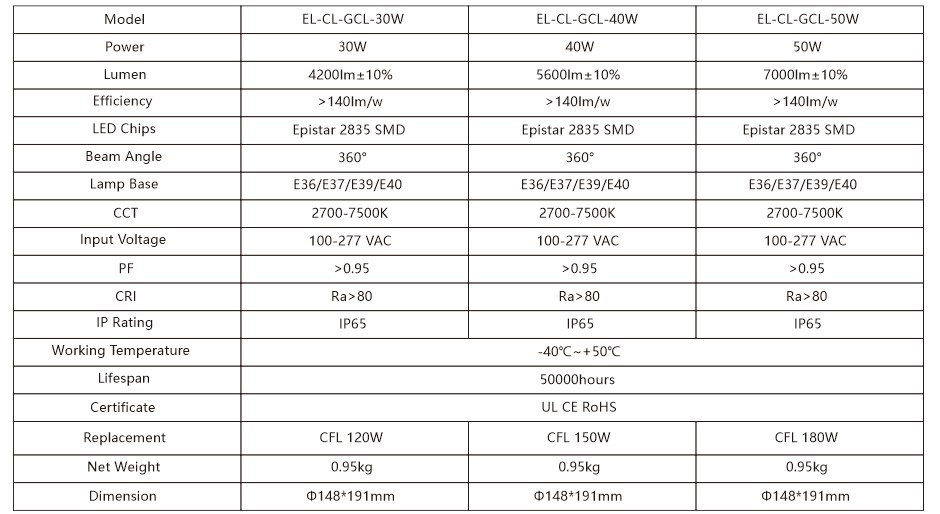

Product Paramenters

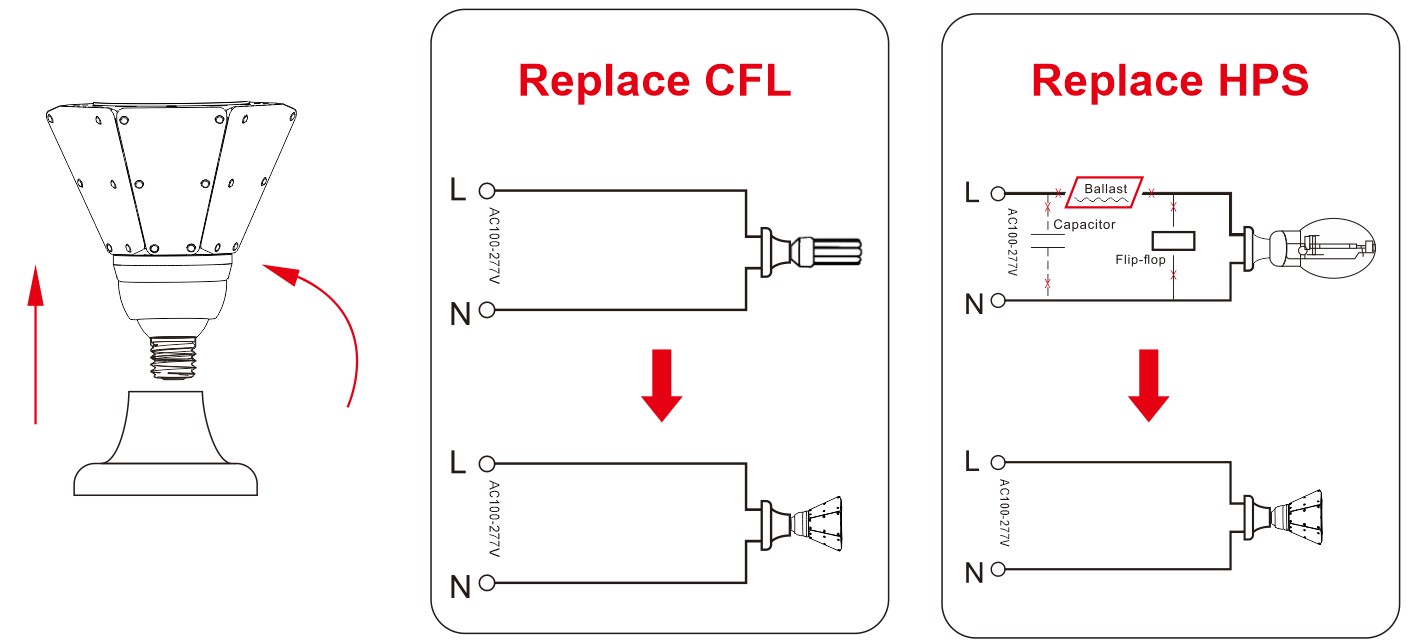

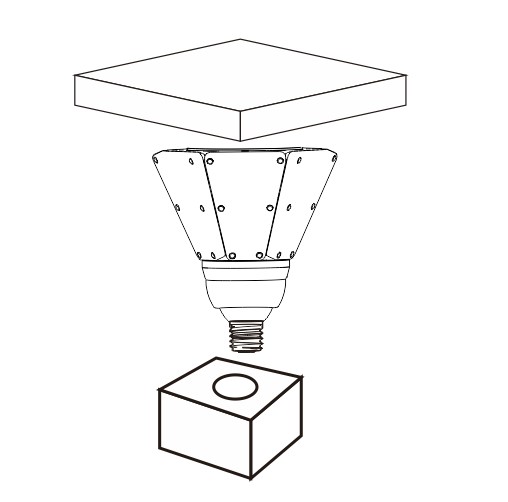

Installations
Note:
Don't take the LED lamp apart;
The LED lamp must work under the right voltage according to the specification;
Not suitable for dimmers or electronic switches or remote controls;
Application in enclosed fixtures may speed up lumen depreciation and shorten lamp life.

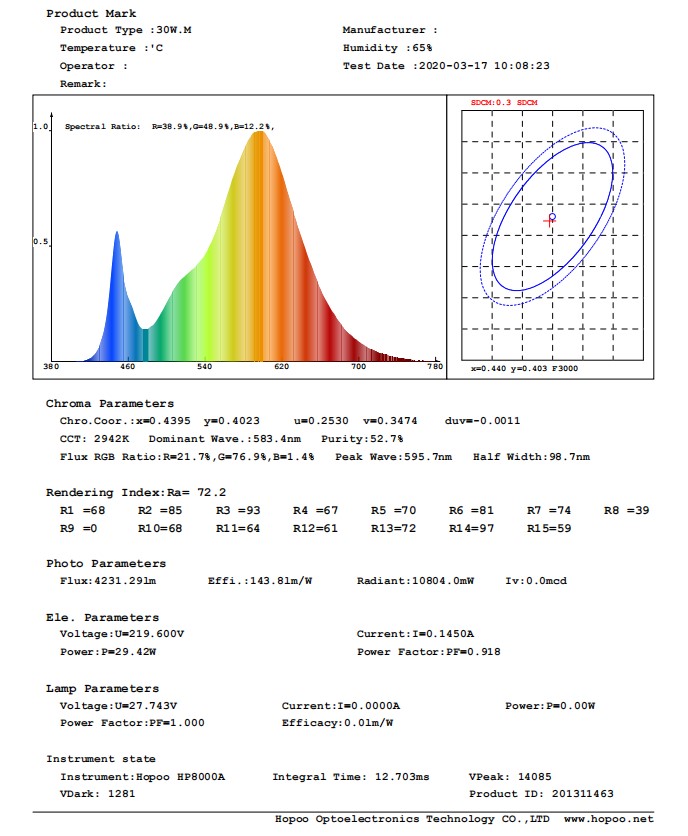

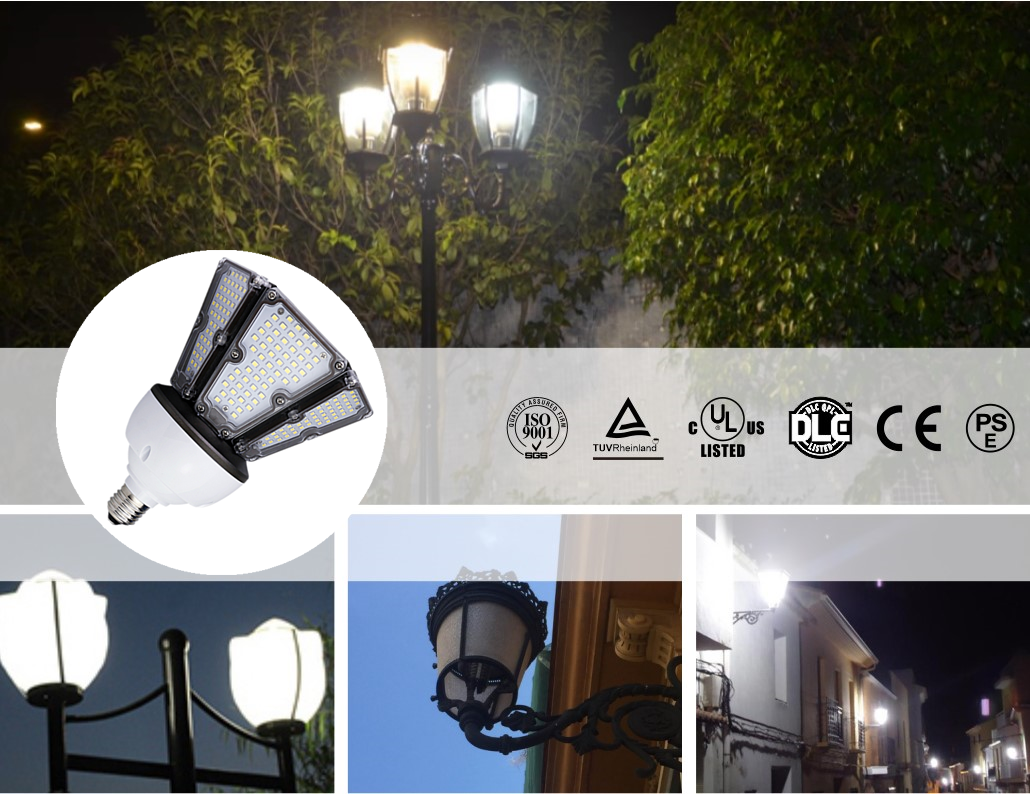

Certifications
Packaging
Gift Box with Cardboard Paper
Support OEM and ODM Service.
Strong Carton
Packed in Seaworthy Carton for Export
Application
Expo GCL-series LED Corn Light is mainly used Courtyard,Garden,street, warehouse, shopping mall,wall light. Parking Lot, Square, Airport, Subway, Gymnasium, and other places need good lighting venue.
